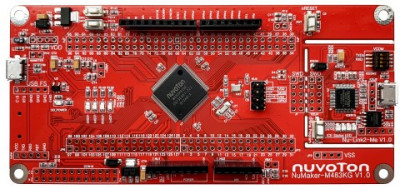

NuMaker-M483KG

The NuMaker-M483KG consists of two parts, a M483 platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M483KG allows users to quickly develop and easily program and debug application.

The NuMaker-M483KG offers M483KGCAE2A full pins extension connectors and Arduino UNO compatible extension connectors. It is an easy-to-develop platform for user to expand the functionality and build the applications. The NuMaker-M483KG also provides an ammeter connector, allows user to monitor the microcontroller’s power consumption during development.

The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. The on-board 16 Mbit SPI Flash allows it able to off-line programming the target microcontroller. Nu-Link2-Me provides virtual COM port (VCOM) function to print out messages on PC. Nu-Link2-Me can be separated from NuMaker-M483KG, allowing user to use as a mass production programming tool.

Board Features
•
NuMicro® M483KGCAE2A used as main microcontroller with function downward compatible with:

-
M481 Series

-
M482 Series

-
M483 Series
•
M483KGCAE2A full pins extension connectors
•
Arduino UNO compatible extension connectors
•
Ammeter connector for measuring the microcontroller’s power consumption
•
Fixable board power supply

-
External VDD power connector

-
Arduino UNO compatible extension connector Vin

-
USB power connector on M031platform

-
ICE USB connector on Nu-Link2-Me
•
On-board Nu-Link2-Me debugger and programmer:

-
Debug through SWD interface

-
On-line /off-line programming

-
Virtual COM port function
