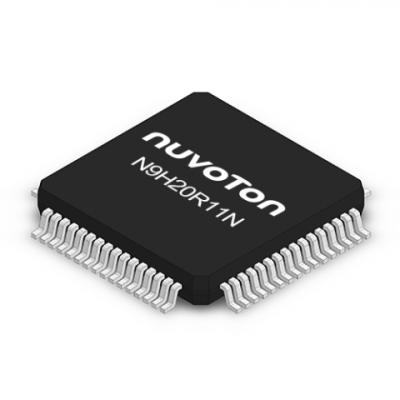

N9H20R11N
NRNDEnd-of-life Product (EOL): Technical support, returns, exchanges, and after-sales services are not available.
Supplier:
Nuvoton
Certification:
本產品為停產 (EOL, End of Life) 產品，恕不提供技術支援、退貨或換貨服務。購買前請確認並接受上述條件。
This product is an End-of-Life (EOL) item. Technical support, returns, exchanges, and after-sales services are not available. Please ensure that you understand and accept these conditions before purchasing.
The N9H20R11N series with the ARM926EJ-S core can operate at up to 200 MHz . It offers 64-pin packages stacked with 2 MB SDRAM Memory to reduce PCB size and EMI issues. Rich peripherals include 2 sets of UART , SDIO/eMMC interface, NAND Flash interface, 16bit LCD controller, Full-Speed USB 2.0 host and High-Speed USB 2.0 device controller to allow more flexibility in designs. The N9H20K11N supports temperature from -20 ℃ to 85 ℃ and targets Home Control, HMI.
Key Features:
• Core
- ARM926EJ-S core
- Operates at up to 200 MHz
- 8 KB I-cache/ 8 KB D-cache
• DDR Memory
- Built-in 2 MB SDRAM Memory
• USB 2.0 Host/Device
- one USB Full Speed Host
- one USB High Speed Device
• System Boot
- Boot from SPI Flash, USB Device
• LCD Controller
- Supports RGB565/ RGB666 interface
- Max. resolution: 800x480
• Dual SD Host Controller
- Supports SD/ SDIO/ eMMC
• Peripheral
- Supports SPI / I²C / PWM
