nuvoton n76s003aq20
SALE

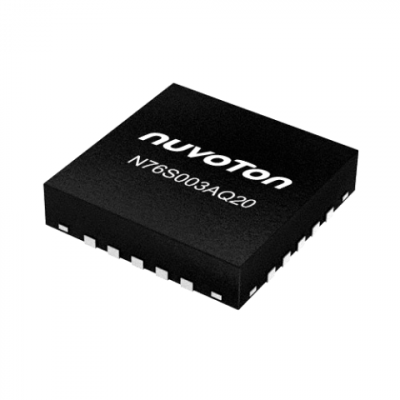

N76S003AQ20

N76S003 Series

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Product Series
N76S003 Series
Core Processor
8051
Frequency
16MHz
PWM
6*16-bit
Number of I/O
18
Operating Voltage
2.4~5.5V
Memory Size
18
Operating Temperature
-40~105˚C
SRAM
1KB
ADC
8*12-bit
Package
QFN20
Description

N76S003AQ20 is an embedded Flash type 1T 8051-based microcontroller, offers 18 KB Flash ROM, configurable Data Flash and 1 KB SRAM. It supports wide operating voltage of 2.4V to 5.5V , temperature range of - 40 ℃ to 105 ℃ , and high noise immunity of 7 kV ESD and 4 kV EFT.

N76S003AQ20 provides up to 18 I/O pins under 20 pin package and rich peripherals including two UART s, SPI, I²C, 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features include a high precision <2 % deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC. N76S003AQ20 supports small form factor packages QFN20 (3 mm x 3 mm) to make designing easily.

Target Application:
Access Control System, Thermostat, Bluetooth Speaker, Electric Meter, Data Collector, Battery charger, Beauty Equipment, Small Home Appliance, etc.

Key Features:
•Core

-1T 8051 processor

-Max frequency up to 16 MHz

-Wide operating voltage: 2.4V to 5.5V

-Temperature range: - 40 ℃ to 105 ℃



•Memory

-18 KB of Flash memory

-1 KB of SRAM

-Supports configurable Data Flash

-Supports program update by:ISP (In-System Programming)
ICP (In-Circuit Programming)
IAP (In-Application Programming)




•PWM

-Up to 6-ch PWM

-Programmable dead-zone generator


•ADC

-12-bit 8-ch ADC

-Runs up to 500 kSPS


•Connectivity

-Two UARTs up to 115200 bps

-One SPI up to 8 MHz

-One I²C up to 400 kHz



•Clock Control

-2 % deviation 16 MHz Internal RC oscillator

-10 kHz Internal RC oscillator



•Package

-QFN20

Packaging *

In Stock: 3,296

MOQ: 1 / MPQ: 1

Total USD 0.20
Up to 10% Off
QuantityUnit Price
1(USD 0.22000)USD 0.20000
