nuvoton nutiny-n76s003at
SALE

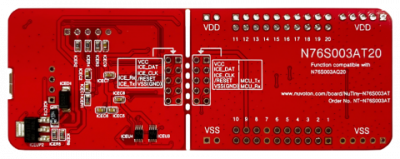

NuTiny-N76S003AT

Evaluation board for N76S003AT20

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Supported Devices
N76S003AT20、N76S003AQ20
Description



The NuTiny-N76S003AT is an evaluation board for Nuvoton NuMicro N76S003AT20 microcontrollers. The NuTiny-N76S003AT consists of two parts: an N76S003AT20 target board and an on-board Nu-Link2-Me debugger and programmer. The NuTiny-N76S003A is designed for project evaluation, prototype development and validation with power consumption monitoring function. The NuTiny-N76S003A board is suitable for a wide range of applications such as home appliances, LED lighting controls, motor controls or Industrial automation.

The NuTiny-N76S003A offers N76S003AT20 full pins extension connectors and diversified power supply option. It is an easy-to-develop platform for user to expand the functionality and build the applications.

In addition, there is an attached on-board debugger and programmer “Nu-Link2-Me”. The Nu-Link2-Me supports on-chip debugging, online and offline ICP programming via SWD interface. The Nu-Link2-Me supports virtual COM (VCOM) port for printing debug messages on PC. Besides, the programming status could be shown on the built-in LEDs. Lastly, the Nu-Link2-Me could be detached from the evaluation board and become a stand-alone mass production programmer.

Packaging *

In Stock: 30

MOQ: 1 / MPQ: 1

Total USD 20.00
Up to 20% Off
QuantityUnit Price
1(USD 25.00000)USD 20.00000
