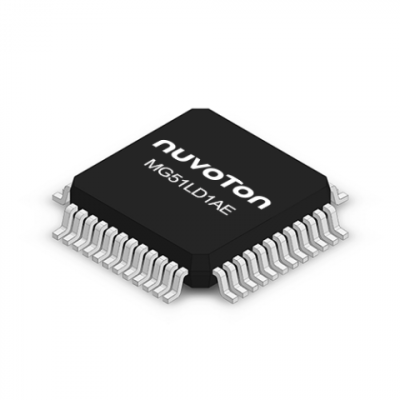

MG51LD1AE

NuMicro® MG51LD1AE is an embedded Flash Memory type 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced. It supports 16 / 24 MHz core speed and features up to 64 KB of Flash Memory, 256 bytes of RAM and 4 KB of auxiliary RAM (XRAM), 4 KB of Flash loader memory (LDROM), 2.4V to 5.5V operating voltage, and -40°C to +105°C operating temperature.

The MG51 series also provides plenty of peripherals including four 16-bit Timers, two UARTs with frame error detection and automatic address recognition, three ISO 7816-3 interfaces, one SPI, one I2C, six basic PWM output channels, six enhanced PWM output channels, and 15-channel 12-bit 500 ksps ADC with continuous mode.

For the development, Nuvoton provides the NuMaker evaluation board and Nuvoton Nu-Link debugger. The 3rd Party IDE such as Keil C51, IAR EW8051, and NuEclipse SDCC compilers are also supported.

Target Application:

•Home Appliances
•LED Lighting Control
•Motor Control
•Industrial Automation

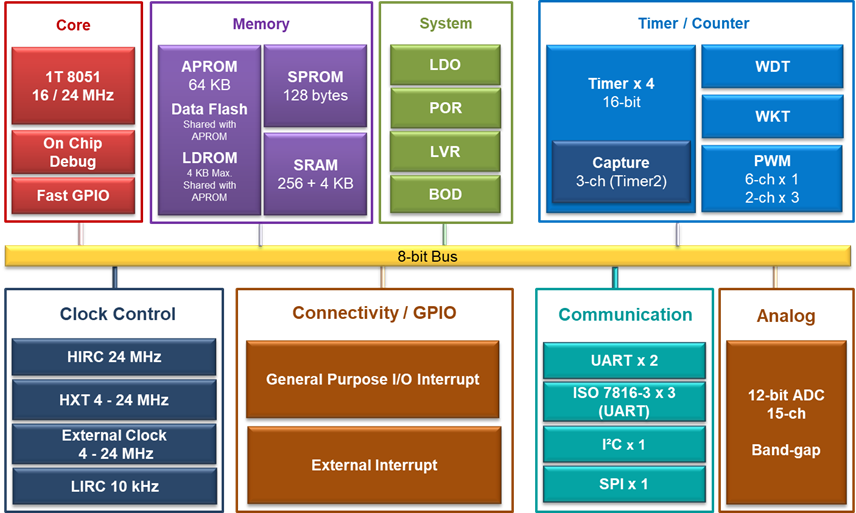

Features:

•Operating Characteristics
-Operating Voltage: 2.4 V to 5.5 V
-Temperature range: -40°C to +105°C
-EFT 4.4 kV
-ESD HBM 7 kV

•Core
-Fully static design 8-bit high performance 1T 8051-based CMOS microcontroller, running up to 24 MHz
-Instruction set fully compatible with MCS-51
-4-priority-level interrupts capability
-Dual Data Pointers (DPTRs)

•Memory
-64 KB Flash Memory
-256 bytes on-chip RAM and 4 KB auxiliary RAM (XRAM)
-4 KB Flash Memory for user program loader (LDROM)
-128 bytes security protection ROM (SPROM)

•Clocks
-Default 16 MHz high-speed internal oscillator (HIRC) with selectable 24 MHz core speed, trimmed to ±1% (accuracy at 25°C, 2.4V to 5.5V), ±2% in -20°C to +105°C
-10 kHz low-speed internal oscillator (LIRC) calibrating to ±1% by software from high-speed internal oscillator

•Power Management
-POR with 1.15V threshold voltage level
-Supports BOD (4.4V / 3.7V / 2.7V / 2.2V falling edge)
-LVR with 2.0V threshold voltage level

•Timer
-Four 16-bit timers
-12 channels of pulse width modulator (PWM) output, with Fault Brake function
-One dedicated Self Wake-up Timer (WKT) for self-timed wake-up for low-power modes
-One programmable Watchdog Timer (WDT) clocked by dedicated 10 kHz internal source

•Communication Interface
-Two UART interfaces
-One I²C interface supporting Master / Slave mode with up   to 400 kbps transmission rate
-One SPI supporting Master / Slave mode
-Up to three ISO7816-3 interfaces support UART function

•Analog
-Up to 15 single-end channels of 12-bit 500 ksps SAR ADC

•Up to 46 I/Os with interrupt capability
-Schmitt trigger input / TTL mode selectable
-I/O all supports interrupt capability
-Supports INT0 / INT1 interrupt pins
-Supports wake-up function

•96-bit Unique ID (UID)

•128-bit Unique Customer ID (UCID)

•Evaluation Board
-NuMaker-MG51LD
