walsin sh15b222k500ct

SH15B222K500CT

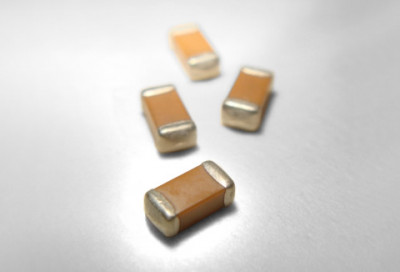

Soft Termination SMD CAP - 0402, 2200pF, 50V, X7R, ±10%

Supplier:

Walsin

Certification:

certcert
Specification
Attribute Value
Package
7" Tape & Reel 10K
Case Code
0402
Dielectric
X7R
Capacitance
2200pF
Tolerance
±10%
Voltage Rating
50V
Length
1.00±0.20mm
Width
0.50±0.20mm
Height
0.50±0.20mm
Description
Solution for Bending Crack






There are two common bending occasions on PCB, one by flap bending on SMT line, the other by imbalance heat conduction of terminal electrodes. Both of these physical distortions on PCB can cause damages on MLCC, and thus results short circuit. To solve such issues and offer better reliability, Walsin Technology presents the MLCC SH series designed to withstand high bending stress. By an extra polymer-Ag layer added inside the terminal electrodes, the SH become much more flexible to resist bending stress.













Available in any item in standard series range, Soft termination MLCC is a customized product which can be applied to all WTC MLCC, also including copper termination for long-term and stable supply.
Features

Product Feature 1

1. MLCC’s terminations build a soft & flexible polymer layer to withstand high bending stress in SMT line.





2. Available for any item in standard series range.

Packaging *

Out of stock

MOQ: 10,000 / MPQ: 10,000

QuantityUnit Price
1USD 0.00089
50,000 +Quote by quantity
Technical Documentation
