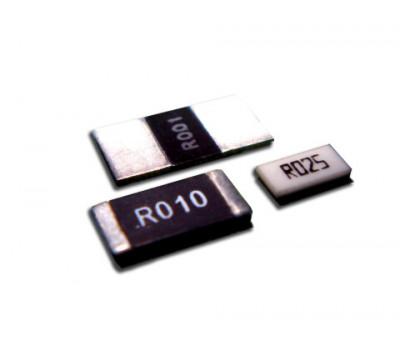

WW06XR390FTL
Thick Film Low Ohm Current Sense RES 0603(1608) 1/10W, 0.39Ω, ≦±500ppm/⁰C, ±1%
Supplier:
Walsin
Certification:
Specification
Attribute Value
Tolerance
±1%
Termination
Sn base (Lead free)
Resistance
0.39Ω
Temperature Coefficient
≦±500ppm/⁰C
Power Rating
1/10W
Case Code - inch (mm)
0603(1608)
Package
7" Tape & Reel 5K
Description
Available in wild size range and resistance range, Walsin’s Thick Film Low Ohm Chip Resistor can be functioned as a current sensor (Rsense) to generate the sensing voltage (Vs) for the purpose of feedback control when output current (lo) passes on it. It is suitable for current sensing protection circuit applications with advantages of low cost, reliable quantity and fast mounting.
Features
Product Feature 1
1. Low TCR down to 50ppm
2. High Power up to 2512 3W
3. Low Resistance down to 2512 0.5mR
4. RoHS Exemption free: Pb free
5. Wide Product Range 0201 ~ 2512
6. Anti-Sulfuration
7. Thick Film, Metal & Metal Foil Technology
2. High Power up to 2512 3W
3. Low Resistance down to 2512 0.5mR
4. RoHS Exemption free: Pb free
5. Wide Product Range 0201 ~ 2512
6. Anti-Sulfuration
7. Thick Film, Metal & Metal Foil Technology
