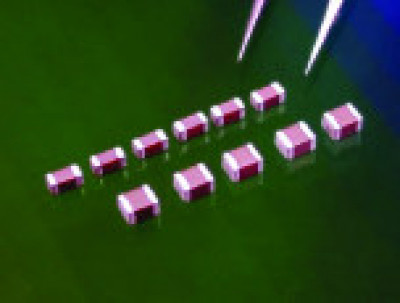

0805B331K102CT
High Voltage SMD CAP - 0805, 330pF, 1000V, X7R, ±10%
Supplier:
Walsin
Certification:
Specification
Attribute Value
Package
7" Tape & Reel 4K
Case Code
0805
Dielectric
X7R
Capacitance
330pF
Tolerance
±10%
Voltage Rating
1000V
Length
2.00±0.15mm
Width
1.25±0.10mm
Height
1.25±0.10mm
Description
WTC High Voltage MLCC is built in with T shield pattern and floating structure, which gives voltage sharing effect and excellent heat dissipation of the device for operating in high temperature circuit requirements.
Features
Product Feature 1
1. High voltage in a given case size.
2. High reliability
3. Special Structure design-pattern gives excellent heat dissipation.
4. Floating design of the inner electrodes provides better reliability and to reduce chances of short circuit.
2. High reliability
3. Special Structure design-pattern gives excellent heat dissipation.
4. Floating design of the inner electrodes provides better reliability and to reduce chances of short circuit.
