nuvoton nuc980df71yc
SALE

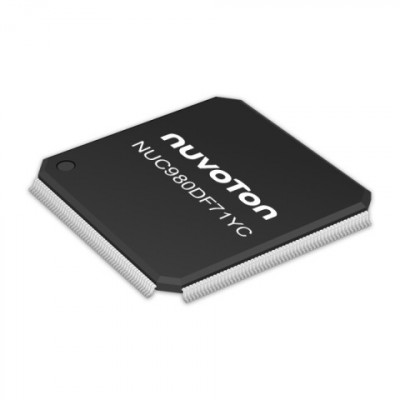

NUC980DF71YC

ARM9 MPU

Supplier:

Nuvoton

Certification:

certcert
Specification
Attribute Value
Frequency
300MHz
Core Processor
ARM9
PWM
8
Operating Voltage
3~3.6V
Operating Temperature
-40~+85˚C
DRAM size
128MB
Package
LQFP216
Product Series
NUC980 Industrial control IoT series
Stack DDR Size
128MB
Crypto
SPI Flash Boot
CMOS Interface
2
I²S
1
eMMC I/F
SD / SDIO
2
NAND Flash Boot
SD Memory Boot
Timer (32-bit)
128
ADC (12bit) CH
8
Real-Time Clock (RTC)
CAN
4
I²C
4
SPI
3
Number of GPIO
104
UART
10
Description

Introduction:
The NUC980DF71YC is part of the NUC980 Industrial control IoT series from Nuvoton. Built on the ARM926EJ-S core, the NUC980DF71YC can operate at up to 300 MHz, providing powerful capabilities for a variety of applications.

Function & Applications:
Designed for flexible design options, the NUC980DF71YC offers rich peripherals including 10 sets of UART, dual Ethernet, 4 sets of CAN 2.0B, dual SDIO/ eMMC interface among others. Aimed to facilitate indutrial applications, the NUC980DF71YC can be used in Industrial Control, Industrial IoT Gateway, Network Printer, Meter Concentrator and Smart Home Gateway applications.

Performance Parameters:
Operating on 128 MB DDR-II Memory within 216-pin LQFP packages, the NUC980DF71YC is finely tuned for optimal performance. It's inbuilt crypto engine supports functionalities like AES, RSA, ECC, SHA providing hardware acceleration.

Package Types, Interface & Pin Configuration:
It comes with up to 216 pins and comes in LQFP (Low-profile Quad Flat Package). User-friendly interfaces include, but are not limited to, SPI/ I²C / PWM / UART / CAN. Features like NAND Flash interface and USB 2.0 host/device controller provide flexibility in design.

Reliability & Lifespan:
The NUC980DF71YC can operate reliably under industrial temperature range from -40℃ to 85℃, thus ensuring durability and longevity under various environmental conditions.

Standards & Certifications:
As a product of Nuvoton, the NUC980DF71YC adheres to stringent industry standards, although specific certifications are not mentioned in the provided description.

Application Cases & Reference Designs:
Among the various applications of the NUC980DF71YC, its usage is notable in areas like Industrial IoT gateway platform and Smart Home Gateway systems. For ease-of-use, the manufacturer provides Evaluation Boards like NuMaker-IIoT-NUC980, NuMaker-RTU-NUC980, and NuMaker-Server-NUC980.

Packaging *

In Stock: 174

MOQ: 1 / MPQ: 1

Total USD 7.04
Up to 20% Off
QuantityUnit Price
1(USD 8.80000)USD 7.04000
100(USD 8.25000)USD 6.60000
500(USD 7.70000)USD 6.16000
5,000 +Quote by quantity
Technical Documentation
