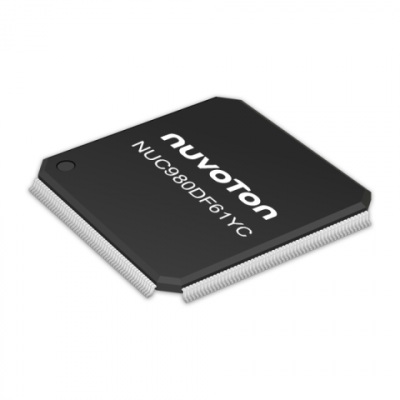

nuvoton nuc980df61yc

NUC980DF61YC

NRND

ARM9 MPU

Supplier:

Nuvoton

Certification:

certcert
Alternative

NRND。Recommended Part Number : NUC980DR63YC

Specification
Attribute Value
Frequency
300MHz
Core Processor
ARM9
PWM
8
Operating Voltage
3~3.6V
Operating Temperature
-40~+85˚C
DRAM size
64MB
Package
LQFP216
Product Series
NUC980 Industrial control IoT series
Stack DDR Size
64MB
Crypto
SPI Flash Boot
CMOS Interface
2
I²S
1
eMMC I/F
SD / SDIO
2
NAND Flash Boot
SD Memory Boot
Timer (32-bit)
64
ADC (12bit) CH
8
Real-Time Clock (RTC)
CAN
4
I²C
4
SPI
3
Number of GPIO
104
UART
10
Description

The NUC980DF61YC series with the ARM926EJ-S core can operate at up to 300 MHz . It offers 216-pin LQFP packages stacked with 64 MB DDR-II Memory to reduce PCB size and EMI issues. Rich peripherals include 10 sets of UART , 2 sets SDIO/eMMC interface, 8 Ports USB Host, NAND Flash interface, QSPI NAND ,4 sets CAN, 2 sets 10/100Mbps Ethernet MAC and High-Speed USB 2.0 host /device controller to allow more flexibility in designs. The NUC980DF61YC also supports industrial temperature from - 40 ℃ to 85 ℃ and targets Ethernet and IoT Control.





Key Features:





• Core
- ARM926EJ-S core
- Operates at up to 300 MHz
- 16 KB I-cache / 16 KB D-cache

• DDR Memory
- Built-in 64 MB DDR II Memory

• USB 2.0 High Speed Host/Device
- Up 2 sets USB ports : one USB Host and one USB Host / Device

• 6 ports USB 1.1 Full Speed Host Lite

• System Boot
- Boot from QSPI NAND, SPI Flash, NAND Flash, eMMC Flash, SD Card or USB Device

• 20-ch Peripheral DMA Controller

• External Bus Interface

• Video Input Interface
- Supports up to 2 Sets CCIR656 / CCIR601 interface
- Max resolution up to 3 M pixels

• SD Host Controller
- 2 Ports SD Host
- Supports SD / SDIO / eMMC

• ADC
- Supports 12-bit 8 channels ADC
- 600 k sps

• Cryptography Accelerator
- ECC-256
- AES-256
- RSA-2048
- SHA-512
- HMAC
- Random number generator

• Peripheral
- Supports SPI / I²C / PWM / UART / CAN

Packaging *

In Stock: 550

MOQ: 1 / MPQ: 1

Total USD 7.68
QuantityUnit Price
1USD 7.68000
100USD 7.20000
500USD 6.72000
5,000 +Quote by quantity
