W25R64JVSSIQ

The W25R64JV, a Serial NOR Flash memory chip, has been developed by Winbond to provide a storage solution for systems with limited space, pins, and power requirements. This 64M-bit/8M-byte memory chip is part of the W25 series, which offers flexibility and performance beyond ordinary Serial Flash devices. Ideal for various applications such as code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP), and storing voice, text, and data, the W25R64JV operates on a single 2.7V to 3.6V power supply with low power consumption.

Function & Applications

The W25R64JV supports the standard Serial Peripheral Interface (SPI) and comes with Dual/Quad I/O SPI, including Serial Clock, Chip Select, Serial Data I/O0 (DI), I/O1 (DO), I/O2, and I/O3. It supports SPI clock frequencies of up to 133MHz, allowing equivalent clock rates of 266MHz (for Dual I/O) and 532MHz (for Quad I/O) when using the Fast Read Dual/Quad I/O instructions. These transfer rates can outperform standard Asynchronous 8 and 16-bit Parallel Flash memories.

Performance Parameters

The W25R64JV offers high-performance with 133MHz Single, Dual/Quad SPI clocks. It boasts more than 100,000 erase/program cycles and over a 20-year data retention period. Moreover, it features low power and a wide temperature range, with a single 2.7 to 3.6V supply, 4mA active current, <1µA power-down, and an operating range of -40°C to +85°C.

Package Types, Interface & Pin Configuration

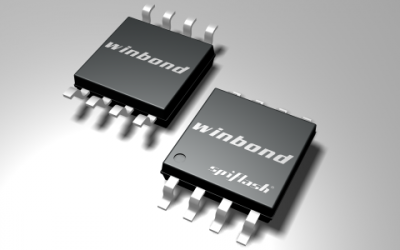

The device supports different packaging options, including 8-pin SOIC 208-mil and 8-pad WSON 6x5-mm. It supports the SPI, Dual-SPI, and Quad-SPI interfaces.

Reliability & Lifespan

The W25R64JV has a proven lifespan of more than 20 years and offers over 100,000 erase/program cycles, ensuring reliability and durability for long-term application use.

Standards & Certifications

The device adheres to the JEDEC standard for manufacturer and device ID and SFDP Register. Its security features comply with the Replay Protection Monotonic Counter (RPMC) standard for secure communication between the flash device and the controller.

Application Cases & Reference Designs

The W25R64JV is suitable for industrial, and consumer applications, including comfort, entertainment, and navigation systems. Its small form factor and high-density features make it ideal for space-constrained systems and advanced applications.
